Triplex Power Pressure Washer Pump 5 GPM 3200 PSI 3600 RPM 1" Hollow Shaft with Unloader

Triplex Power Pressure Washer Pump 5 GPM 3200 PSI 3600 RPM 1" Hollow Shaft with Unloader

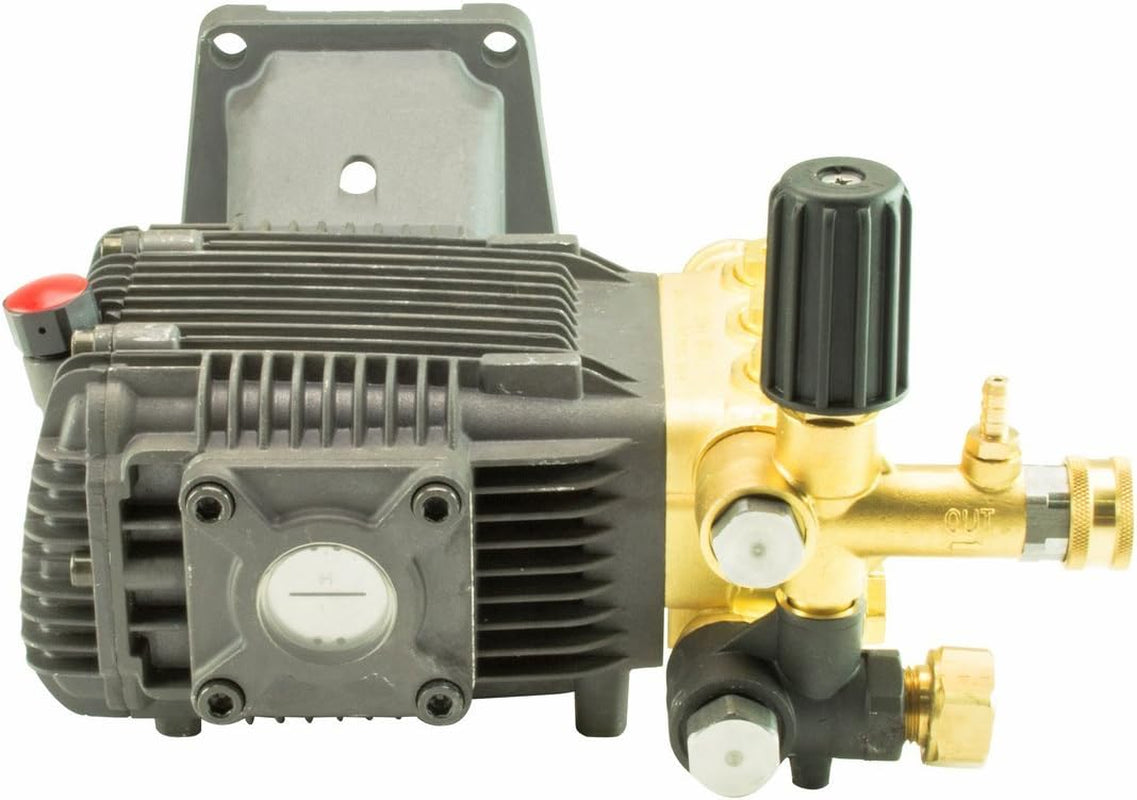

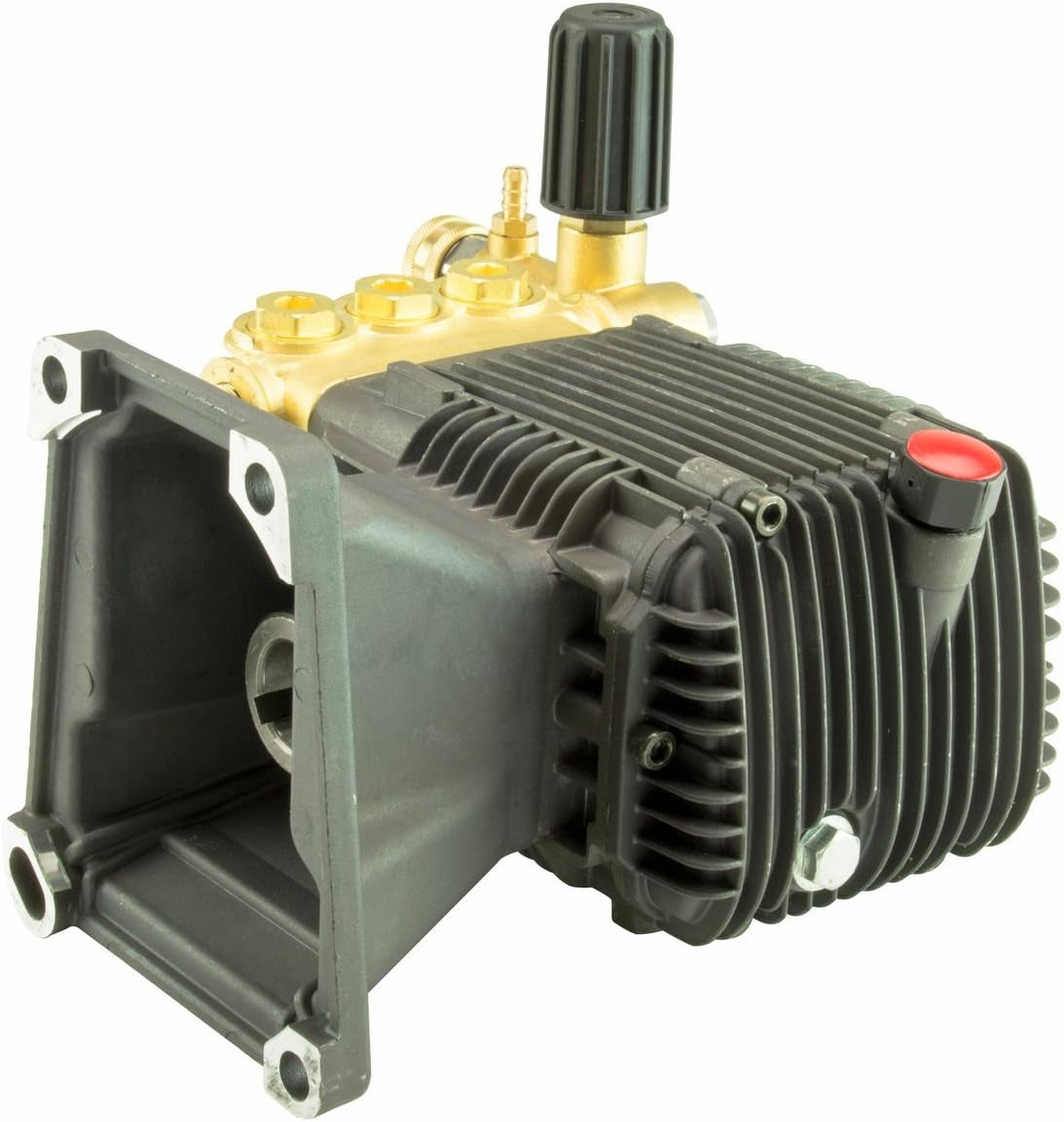

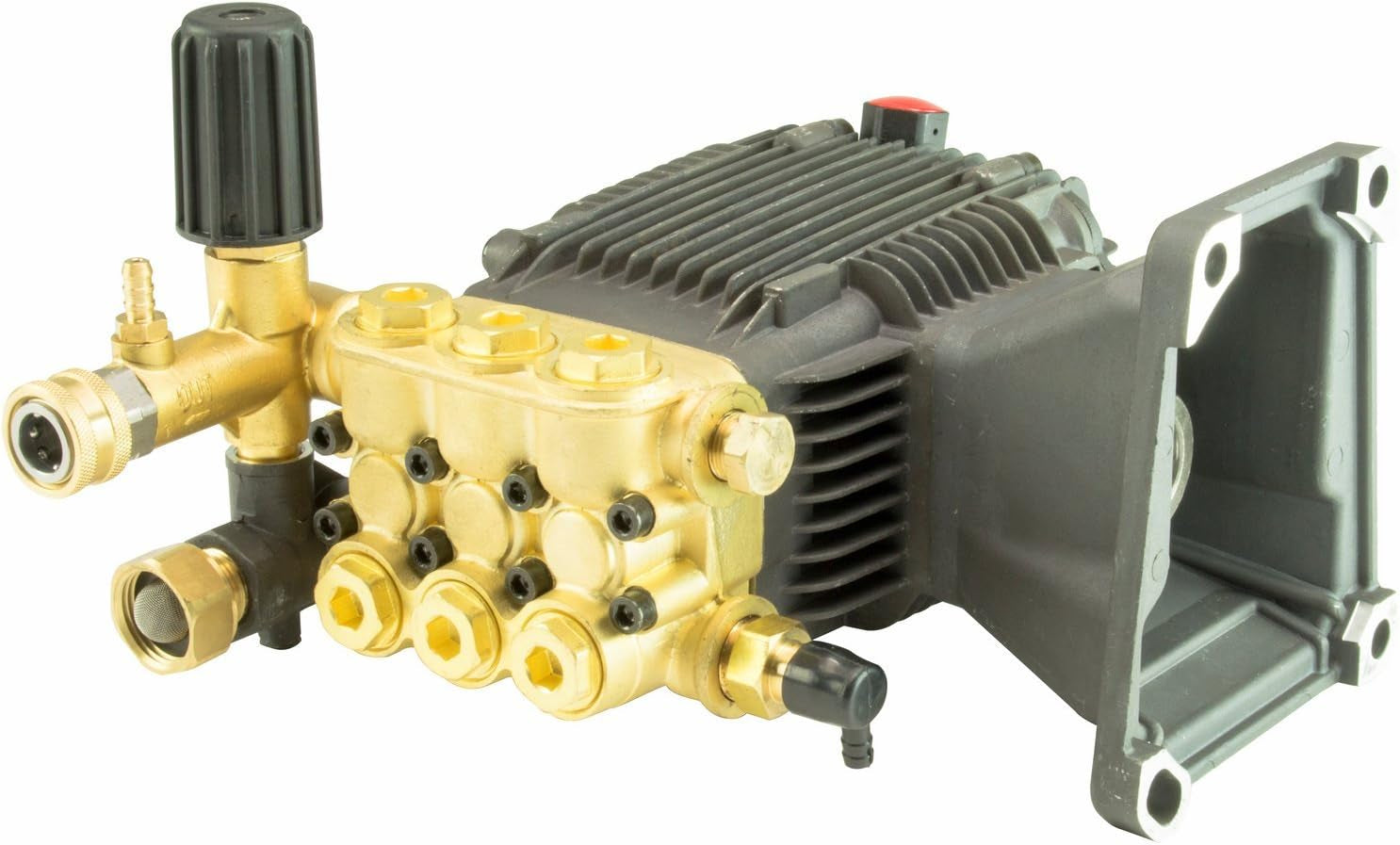

Erie Tools triplex 1-inch hollow shaft pressure washer pump for Cat General AR. This pressure washer pump has a forged brass manifold and features a reinforced pop off valve and a ceramic-coated plunger. The Erie Tools 1512A offers a 5 GPM flow rate and a maximum pressure of 3,200 PSI (220 BAR). This pump requires an input of 3,400 RPM and 13 HP.
Direct-drive triplex plunger pump.

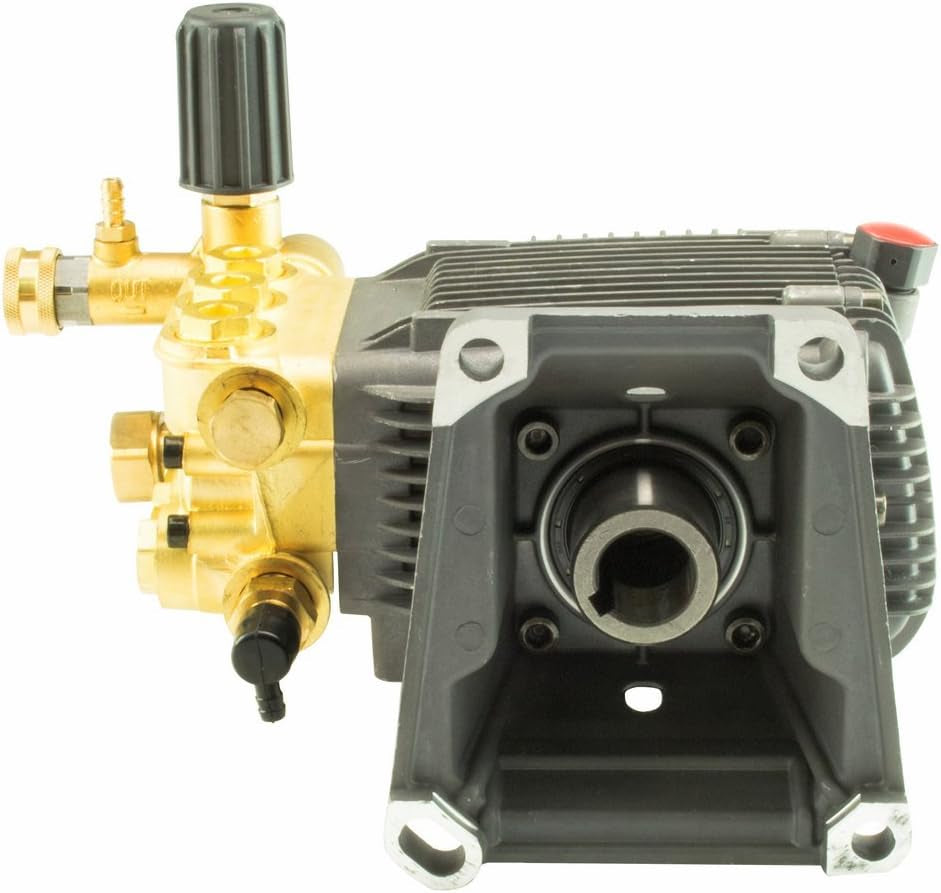

1-inch right-hand hollow shaft pressure washer pump.
Maximum Pressure: 3,200 PSI (220 Bar)
Flow Rate: 5 GPM
Requires: 3,400 RPM and 13 HP
Inlet: 3/4 in.

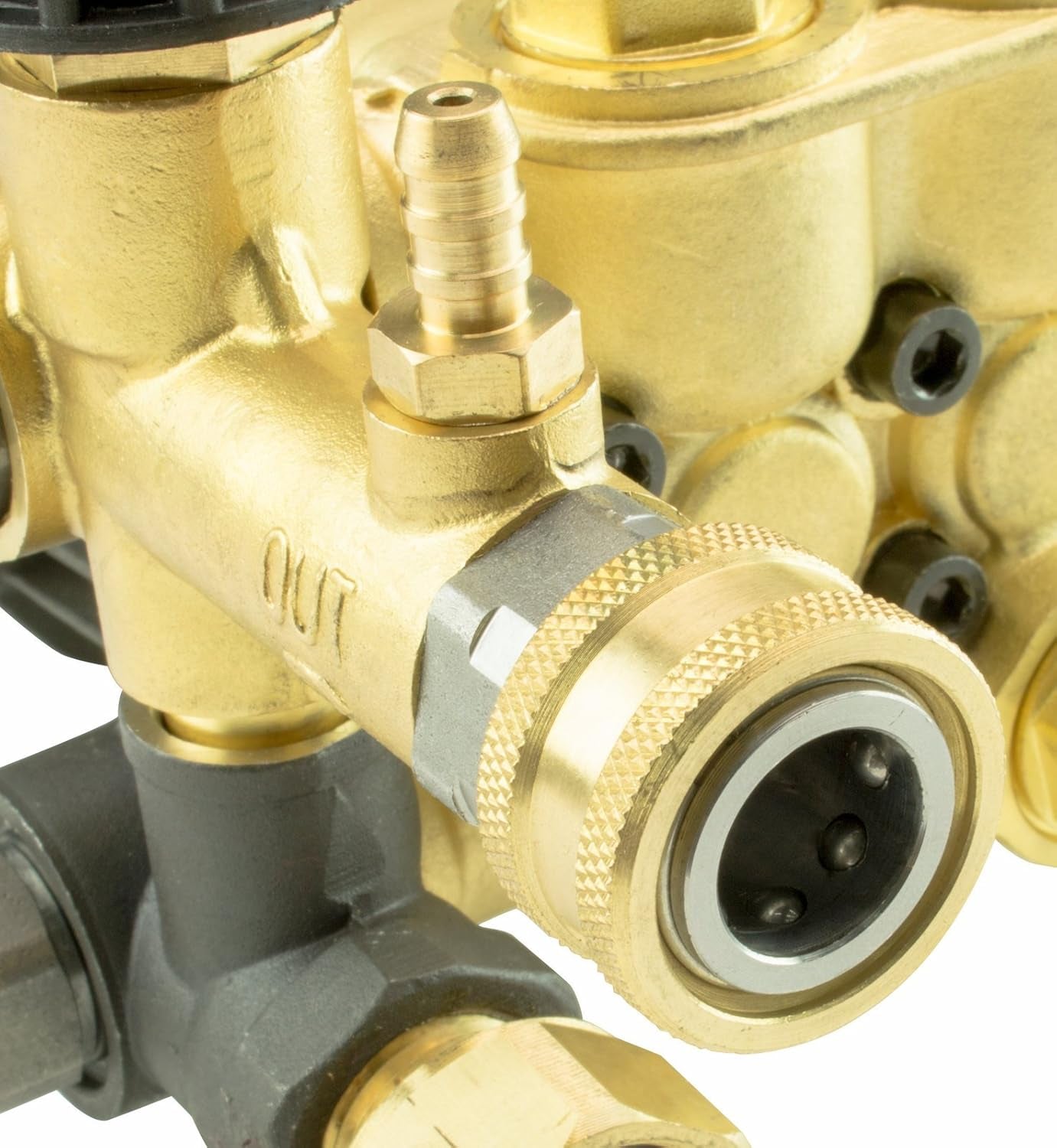

Outlet: 3/8 in. Quick Disconnect

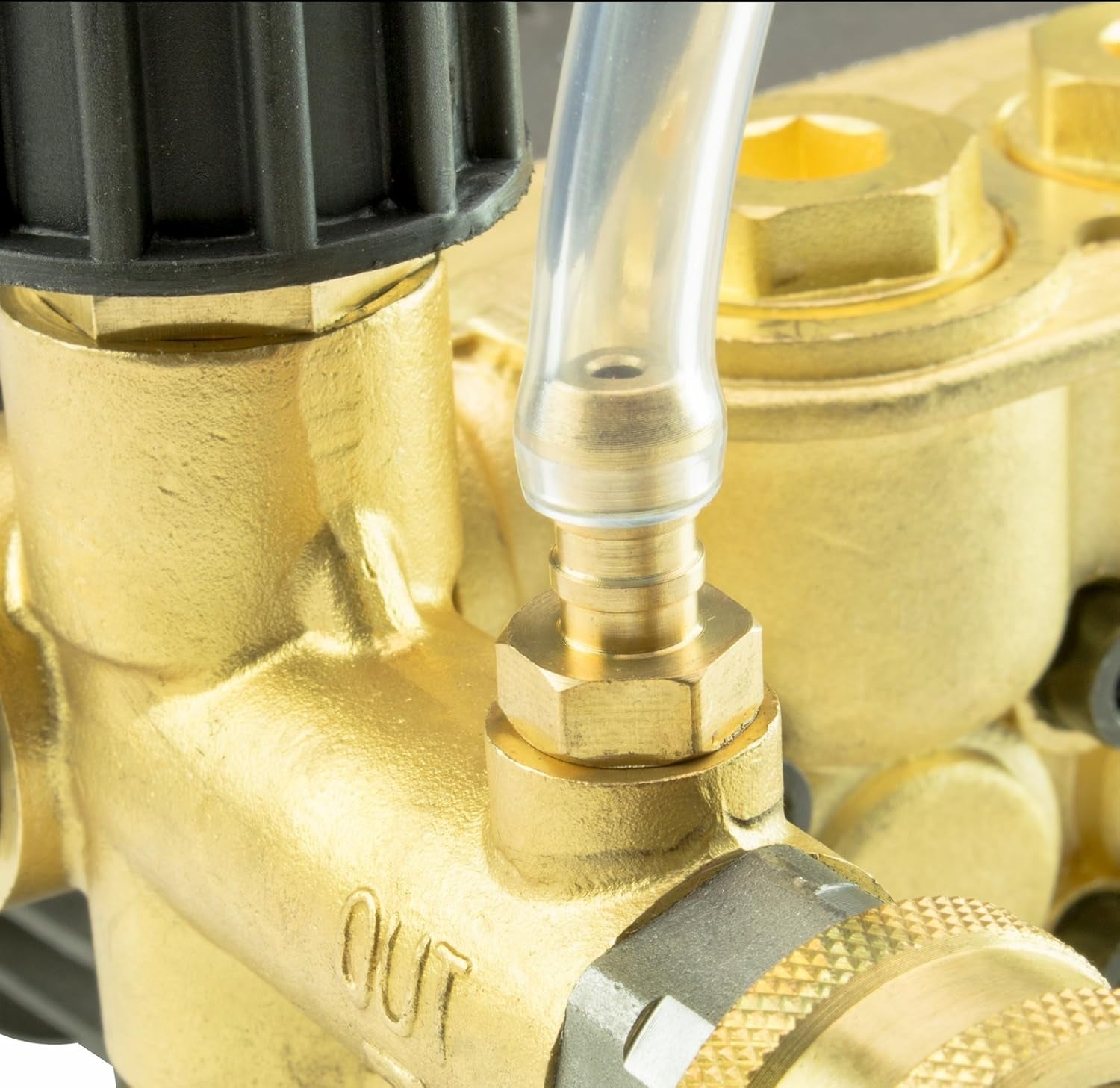

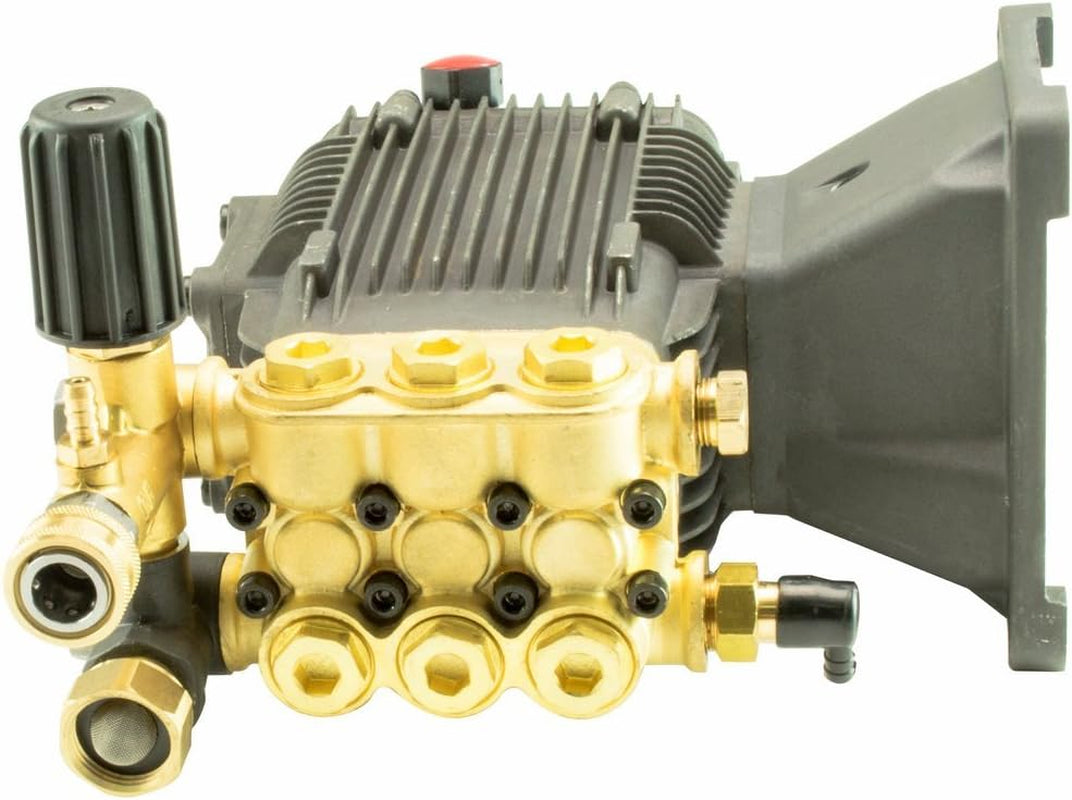

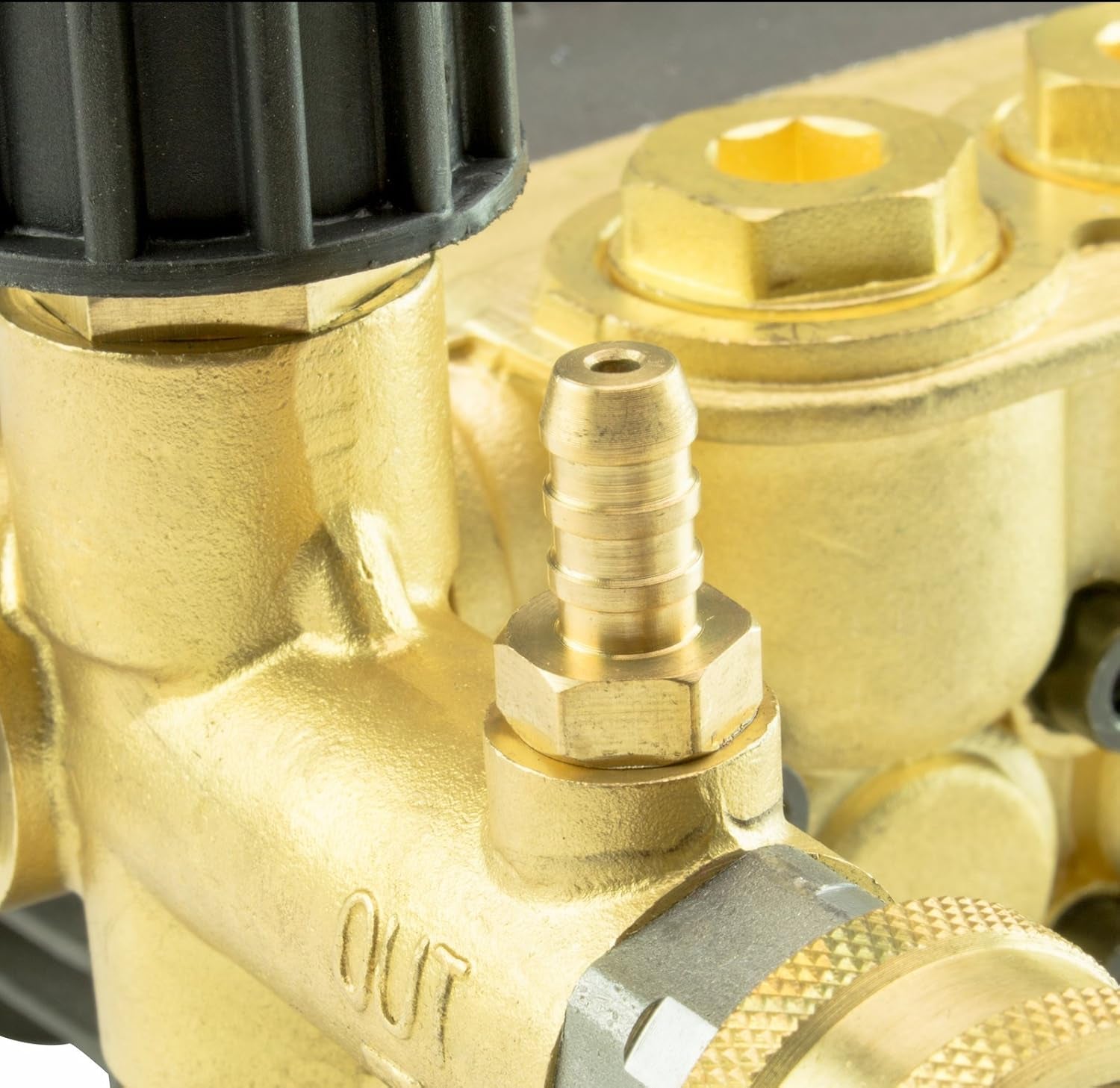

Forged Brass manifold provides high strength and corrosion resistance.

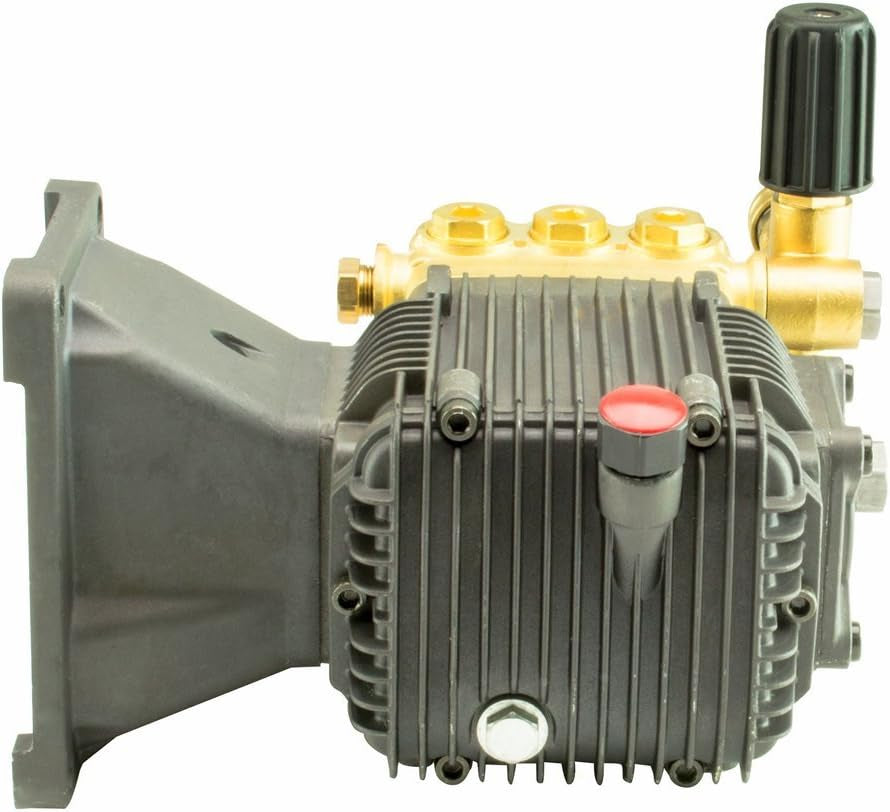

Anodized aluminum die-cast crankcase with large cooling fin for maximum heat dissipation.
Hardened and precision-ground steel alloy crankshaft for maximum durability.
One-piece aluminum alloy connecting rod.
Ball and needle bearing for even load distribution.
Ceramic-coated plunger to increase resistance to pitting and wear.
Plunger seals are Germany Parker U Type with duplex packing.
Bolt on unloader with internal bypass pressure trap type.
Top Bolt Measurement: 3-1/4 in.
Bottom Bolt Measurement: 4-1/2 in.
