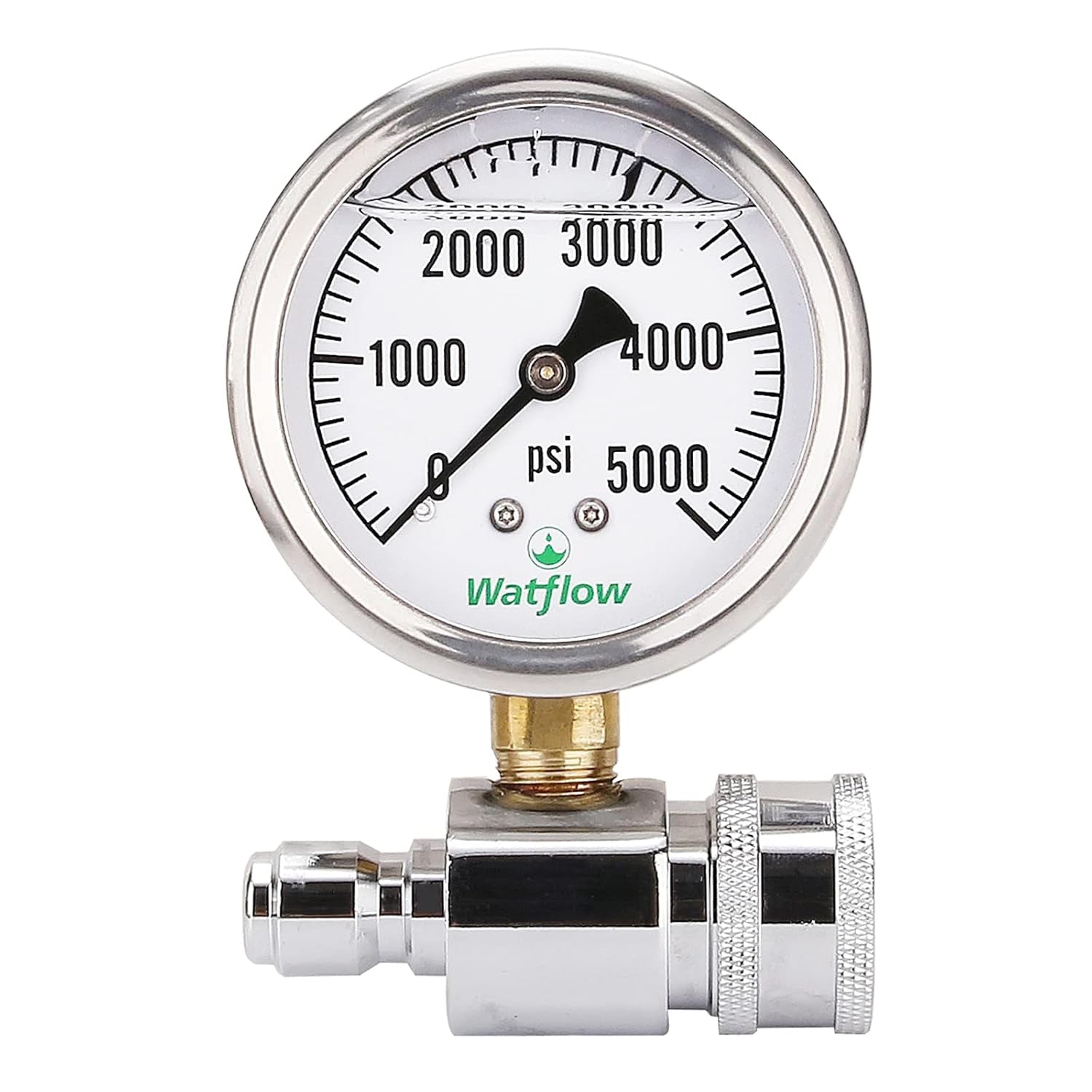

For pressure measuring on the high pressure washer equipment
2-1/2" dial size, stainless steel case and brass inside and connection

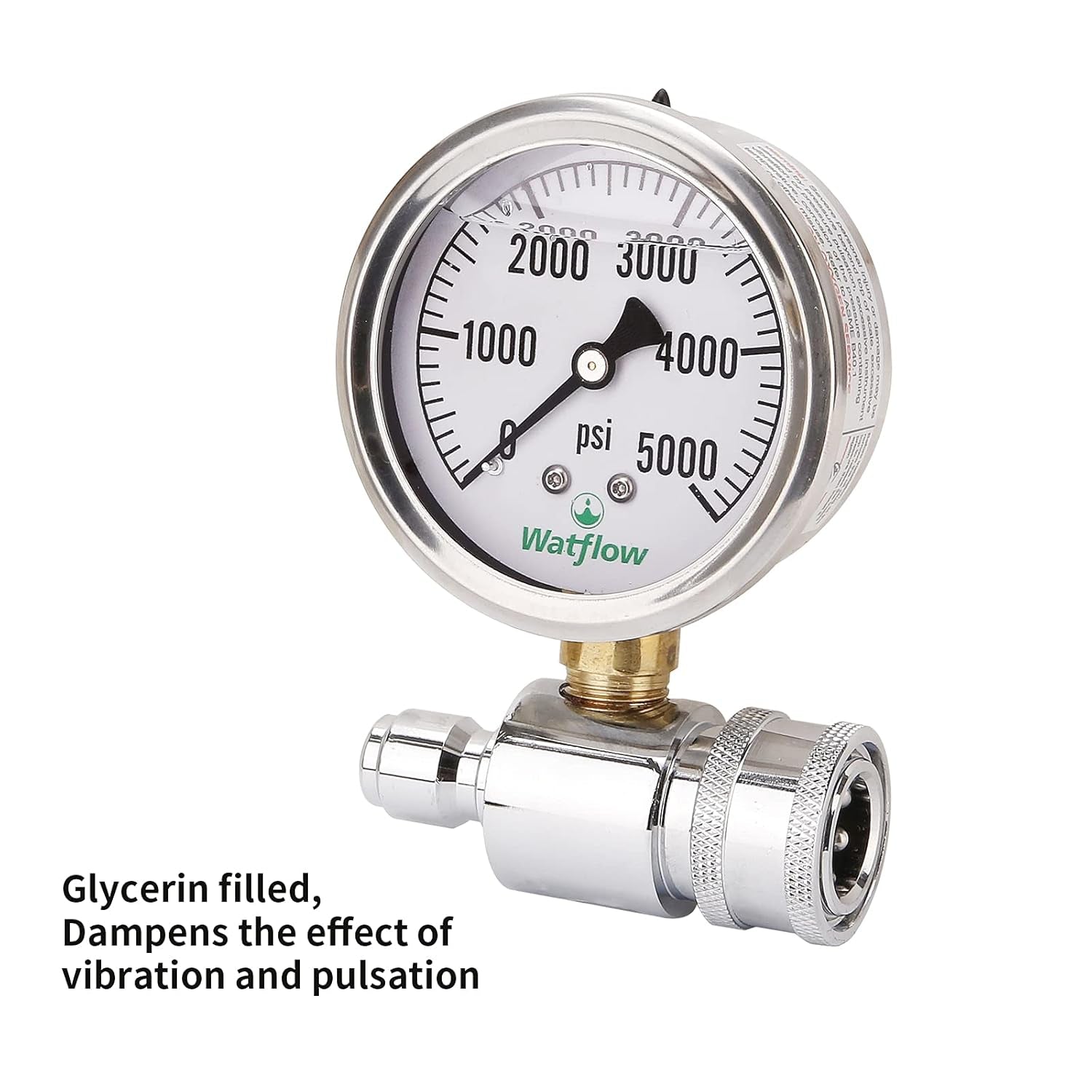

Easy to read, 0-5000psi single scale, glycerin oil filled for vibration proof

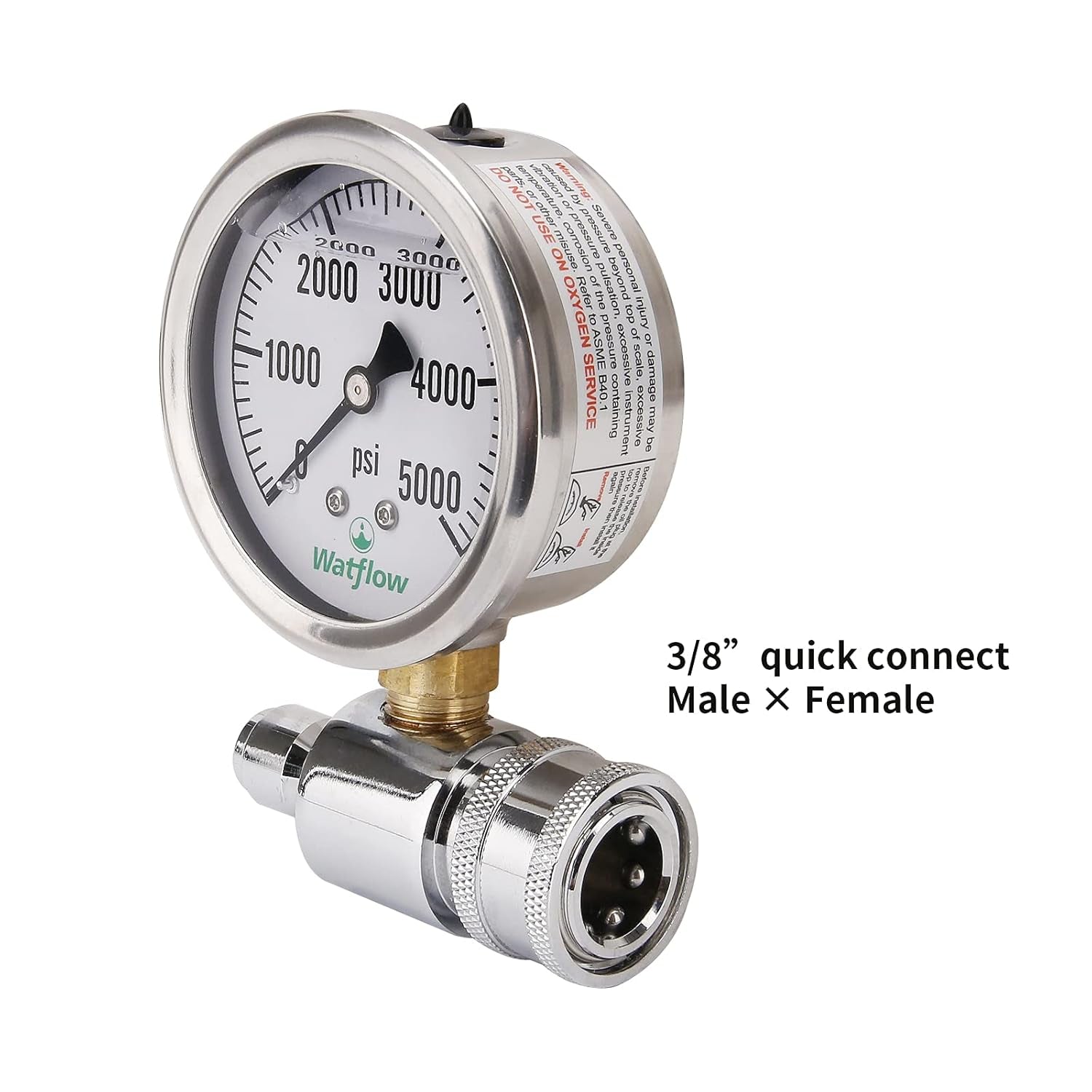

Universal 3/8 inch quick connect socket and plug, fit and quick connect with most brands and models of pressure washer
Accuracy: +/-3-2-3%

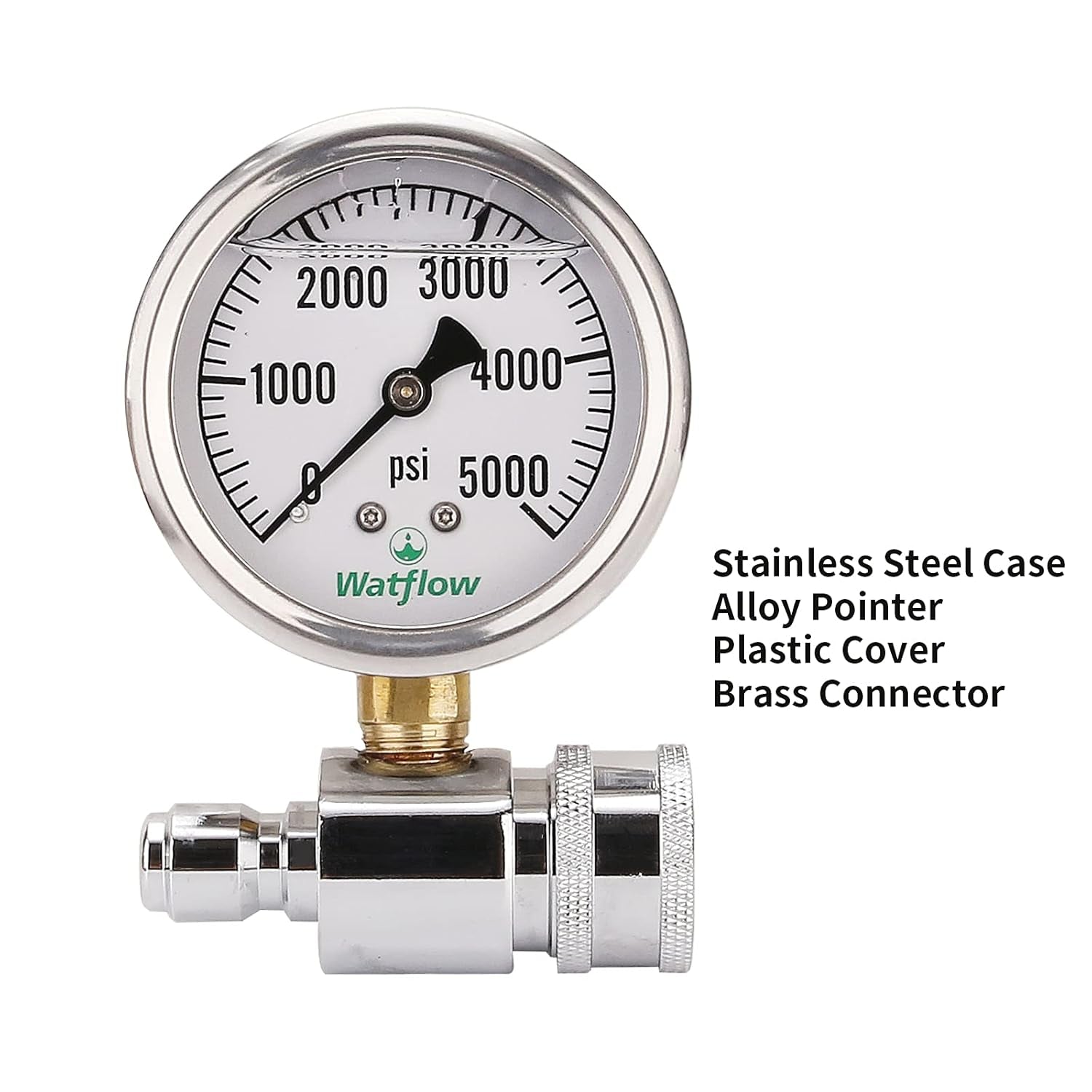

Description This high pressure washer pressure gauge is designed for high pressure washer equipments. Dial size : 2-1/2"" Process connection : 3/8"" quick connection, socket and plugs Case : 304 stainless steel case and crimped ring Window : Polycarbonate Dial plate : aluminum, with pointer stop Pointer : Aluminum, black, DIN style Boudon tube : Copper alloy Movement : Brass Connection : Brass, two piece design Oil cap : rubber, black color Filling : Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge. IP class : IP67 Accuracy : +/-3-2-3% Range : 0-5000psi single scale Working temperature : -4 to 140 deg F/-20 to 60 deg C Ambient temperature : 140 deg F/60 deg C maximum
